F-950 UHF R2000 integrated RFID reader
Product technical parameter
| Model number | F-950, RS232, RS485, Wiegand 26 interface, RS232, RS485, Wiegand 26, TCP/IP interface |
| Engine | Design based on Impinj R2000 chip |
| Frequency | 865~868 MHz (EU standard), 902~928 MHz (US standard) |
| Protocol | ISO18000-6B/6C(EPC GEN2) |
| Built-in antenna | 8dbi circular antenna |
| Available antenna | With one more external antenna port |
| Work mode | auto-running, interactive and trigger-activating (optional) |
| RF power | 30dbm (adjustable) |
| Read distance | 8~22m / 72ft (depends on tag) |
| Interface | RS232 / RS485 / WG26 / TCP / IP (optional) NO relay (dry ct.) |
| Power supply | 9V ~24V |
| Current Dissipation | 600~1500mA |
| Support function | 1 external indicator control port and 2 built-in relays |
| IP grade | IP67 |
| Reader size | 300*300*120mm |
| Net weight | 2.85kg |
| Package size | 350*350*210mm |
| Pakage goss weight | 4.9kg |
| Operating Temp | -10~+55°C |
| Storage Temp | -20~+75°C |

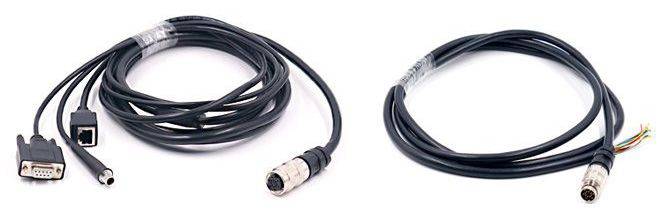

Communication cable
